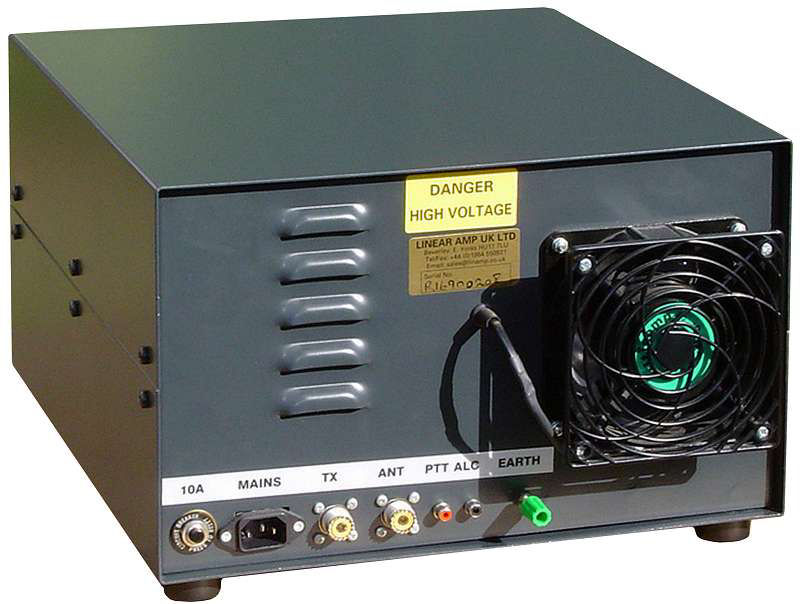

Linear Amp UK Ranger 811H
| Type: |
Linear Power Amplifier |
| Frequency Range: |
10-160 m + WARC m |
| Voltage: |
Mains: 220-240 VAC |
| Current Drain: |
SSB/CW: 800 W
RTTY: 300 W RMS continuous |
| Drive power: |
Max: 100 W |
| Maximum output power: |
800 W |
| Dimensions (W*H*D): |
355 x 241 x 406 mm (14 x 9.5 x 16 inches) |
| Weight: |
25 Kg (55.1 lbs) |
| Manufactured: |
United Kingdom: 1998-20xx (Discontinued) |
| Other: |
|
| Related Documents: |
|
 |
